300m Detection Distance Wind Measurement Lidar Powered by Beam 1 0° and Beam 2 2.05°±0.2°

Product Description:

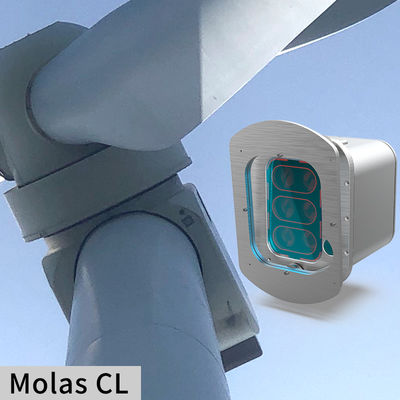

Molas CL tower clearance lidar is a type of lidar system designed to track the distance between the blade tip and the tower in real time. When the clearance value approaches the designated minimum level, the fan unit's main controller can swiftly implement protective measures such as deceleration or retraction. The integration of tower clearance lidar on existing units helps to prevent tower collisions, elevate the operational limit of at-risk units, and enhance power generation.

Implementing tower clearance lidar in future units offers benefits including reduced blade expenses and lower design requirements for the units. By leveraging this technology, operators can optimize the performance and safety of wind turbines for sustainable energy production.

Features:

• Product Name: Wind Measurement Lidar
• Detection Distance: 300m @ 10% reflectivity
• Beam 3: 4.09±0.2°
• Beam 1: 0°
• Working Acceleration Range: -0.5g to 0.5g
• Measurement Accuracy: ±0.2m

Technical Parameters:

Applications:

Single point precise feedback

Threshold detection

Trend detection
